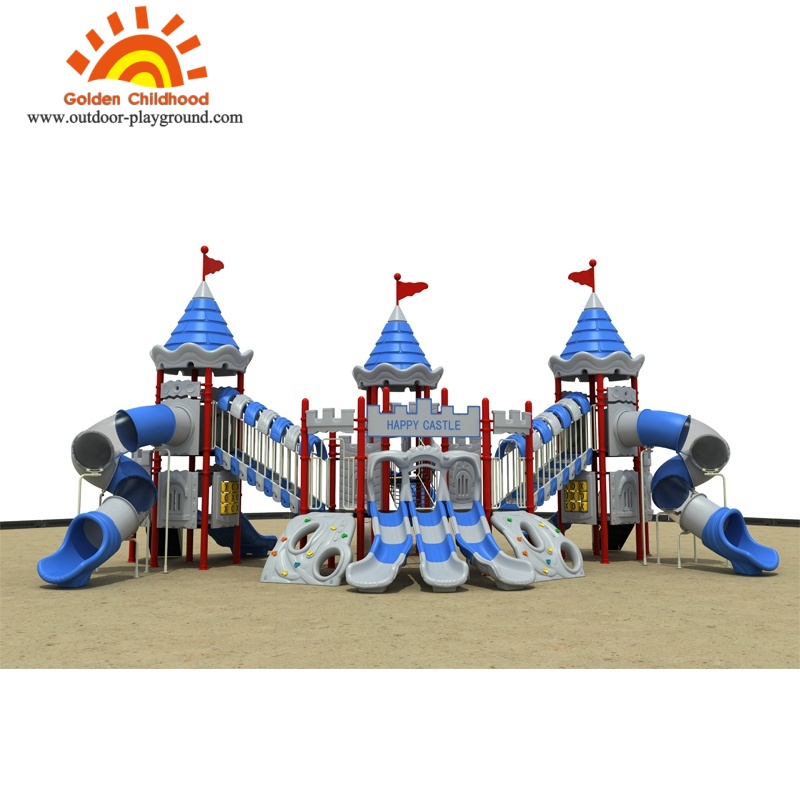

Commercial Outdoor Playground Equipment

  • GC
  • Shenyang, Liaoning
  • 7-10 days
  • 200,000 pieces/year
1. Our wooden outdoor playground equipment provides detailed CAD installation drawings for customers to install by themselves. 2. The delivery time for conventional wooden outdoor playground equipment is 7-10 days, and customized products need to be determined according to the project. 3. The core structure of our wooden outdoor playground equipment is made of 2mm thick galvanized steel, which is resistant to corrosion, sun and rain, and has a normal service life of more than 10 years.

Introduction to wooden outdoor playground equipment:

This wooden outdoor playground equipment combines slides, climbing areas and multi-layer rest platforms, with an overall length of more than 13 meters. It not only allows children to exercise in the game, but also makes the venue itself more distinctive and attractive. Considering the high requirements of commercial venues for durability and maintenance costs, the core structure of the metal outdoor playground structure is made of 2mm thick galvanized steel and treated with high adhesion pure polyester powder coating, which is resistant to corrosion, sun and rain, and has a normal service life of more than 10 years. The plastic parts are made of LLDPE environmentally friendly materials, which are brightly colored and not easy to fade. Compared with ordinary metal outdoor playground structures, such materials and processes can significantly reduce the frequency of subsequent maintenance and replacement, saving you budget and manpower investment.

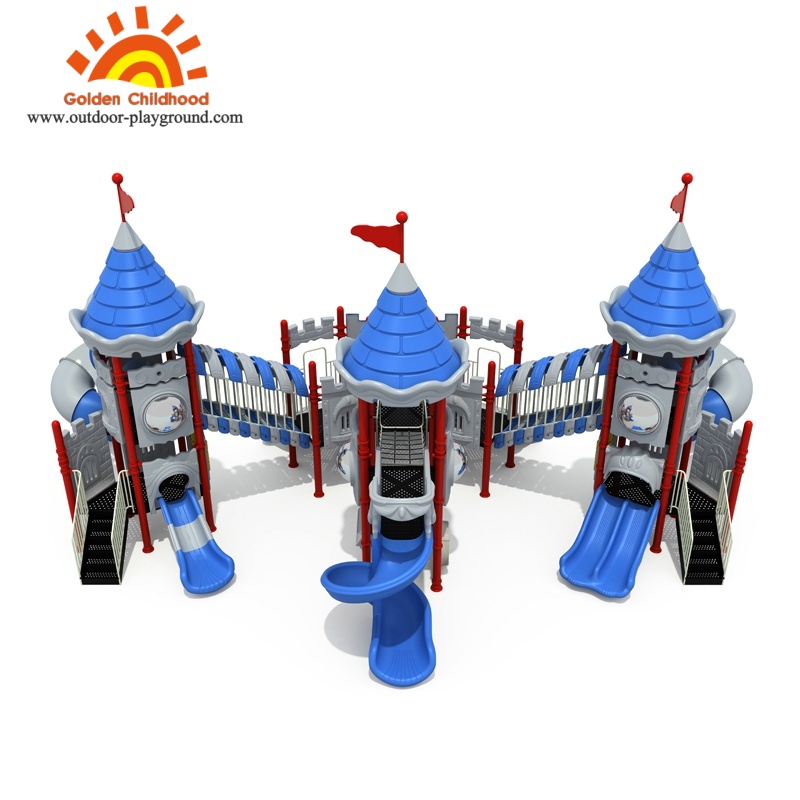

Wooden outdoor playground equipment


Highlights of materials and processes of metal outdoor playground structure:

1. Our metal outdoor playground structure uses LLDPE (linear low-density polyethylene) through a rotational molding process, which is brightly colored, UV-resistant, wear-resistant and corrosion-resistant.

2. All metal pipes of our metal outdoor playground structure are galvanized pipes that meet the GB/T 13793-2008 standard, with a thickness of 2mm, and have excellent anti-rust performance and mechanical strength.

3. Our modular outdoor playground system uses galvanized steel plates of the same standard, with a thickness of 2mm and reliable load-bearing performance.

4. Our modular outdoor playground system uses pure polyester powder spraying, and the dry film thickness is maintained at 50-70 microns. After the ASTM-D-3359 standard adhesion test, the surface color is long-lasting and bright.

5. Our modular outdoor playground system uses galvanized or stainless steel hexagonal bolts, nylon locking nuts, and is equipped with PVC screw protective covers.

6. All pipe openings of our modular outdoor playground system are equipped with GI/PVC caps, which meet international safety standards. ·

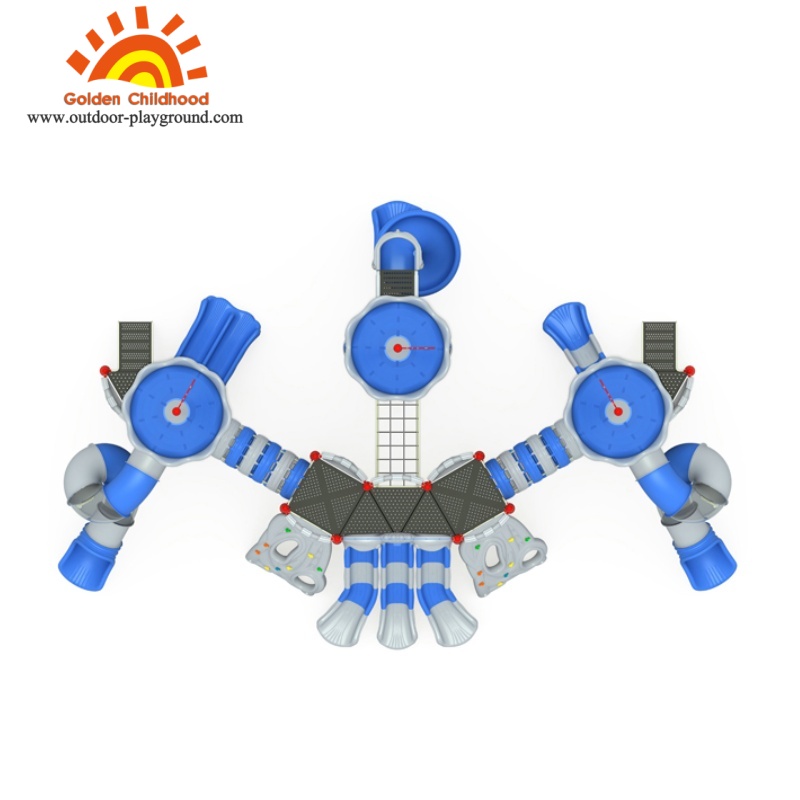

Metal outdoor playground structure


Parameters of residential outdoor playground:

NameResidential outdoor playground
ModelCalstle theme (GC-05201)
Dimensions (L*W*H)1323 * 871 * 610 cm
MaterialPlastic: The plastic part of the residential outdoor playground is made of LLDPE (Linear Low Density Polyethylene) through rotational molding process.
Iron parts: All metal pipes of the residential outdoor playground are made of galvanized pipes in accordance with GB/T 13793-2008 standard with a thickness of 2mm.
Platform: All platforms of the residential outdoor playground are made of galvanized sheets in accordance with GB/T 13793-2008 standard with a thickness of 2mm.
Powder coating: The residential outdoor playground uses pure polyester raw materials. The dry film thickness is maintained in the range of 50-70 microns. Adhesion test is carried out using a cross-hatch instrument (according to ASTM-D-3359 standard).
Nuts and bolts: Galvanized / Stainless steel / Hexagon socket bolts / Round head hexagon socket bolts and nuts / Nylon locking nuts are used with PVC bolt covers.
InstallationAll open ends of residential outdoor playground pipes are closed with GI/PVC caps.
CertificateProfessional CAD guidance or remote installation guidance.
Age rangeISO9001:2000, CE, TUV, SGS, etc.
Usage3-12 years old.
Delivery timeKindergartens, amusement parks, shopping malls, public places, etc.


Certification:

The factory and modular outdoor playground system have passed ISO9001:2000, CE, TUV, SGS and other certifications.


FAQ:

Q1: How to place an order for commercial outdoor playground equipment?

Commercial outdoor playground equipment needs to go through the entire process of signing a contract → paying a deposit → scheduling production → paying the balance → loading and shipping.

Q2: How long does it take to get a design plan for commercial outdoor playground equipment?

Small venues: usually 1 day.

Medium and large venues: complete the draft design within 1-2 days.


Customization and service advantages:

According to the customer's region and venue requirements, our design team provides free personalized solutions.

24-hour pre-sales and after-sales consultation for you.

The color, layout, LOGO, etc. of commercial outdoor playground equipment can be customized to match different commercial projects or theme styles.


Modular outdoor playground system

?1: How to order?

1: How to order?

?2: How long does it take to get a design plan?

Small venues: usually 1 day. Medium and large venues: complete the design draft within 1-2 days.

?3: Can the equipment be customized?

The color, layout, and functional modules can be customized as needed.

?4: How long is the delivery cycle?

Conventional products are generally 7-10 days, and customized projects depend on the specific plan.

?Q5: Is the installation complicated?

We provide detailed installation drawings and remote technical guidance.
